Key Takeaways
- Milwaukee® splits its cordless system into two platforms: M18 for full-size professional tools with 300+ compatible solutions, and M12 for compact trade applications covering 125+ tools; batteries between the two platforms are not interchangeable.
- The M18 REDLITHIUM XC 5.0Ah is the go-to workhorse for general jobsite use, delivering 2.5X more runtime and 20% more power than standard lithium-ion batteries, with a full recharge in approximately 60 minutes.
- For sustained high-draw M18 applications, the HIGH OUTPUT XC 6.0Ah runs 50% cooler and delivers 50% more power than standard XC packs, while the FORGE XC 8.0Ah matches HD12.0-level output in a lighter, more portable build.
- On the M12 platform, the HIGH OUTPUT XC 5.0Ah is the top-tier pack for demanding FUEL tools, while the CP2.0 Compact is best used as a lightweight secondary battery for confined spaces and overhead work.
- GenuineTools stocks a wide selection of Milwaukee® REDLITHIUM packs across both the M18 and M12 platforms; 100% authentic, factory-sealed, and ready to ship from a US warehouse within one business day.
Milwaukee® Battery Types: The Differences You Need to Know
Milwaukee® builds its cordless battery system around two platforms: M18 for full-size professional tools and M12 for compact, precision-trade applications. Choosing the right pack within each platform makes a real difference on the job.
On the M18 side, the XC 5.0Ah handles all-day general use, the HIGH OUTPUT XC 6.0Ah steps up for power-hungry tools like grinders and reciprocating saws, and the FORGE XC 8.0Ah delivers HD12.0-level output at just 2.38 lbs. On the M12 side, the HIGH OUTPUT XC 5.0Ah pushes the 12V platform into demanding territory, while the compact CP2.0 keeps tools light for overhead and confined-space work.
Each pack is broken down in detail below: specs, charging times, and best use cases, so you can match the right battery to how you actually work.
Authentic Professional Tools Up to 60% Off MSRP. Why Contractors & DIYers Choose GenuineTools!Get Milwaukee®, DeWALT®, Ring, etc tools at unbeatable prices. Highly rated by verified customers who trust authentic equipment. Why Choose GenuineTools:
30-Day Money-Back Guarantee: Full refund for defective or unopened items; opened items may be subject to a restocking fee. |
Milwaukee® M18 Battery Types
The M18 platform is Milwaukee®’s flagship cordless system, compatible with over 300 tools. From a circular saw on a framing site to an LED work light during an evening job, there's a specific M18 battery built for that load. Here’s how each one stacks up.

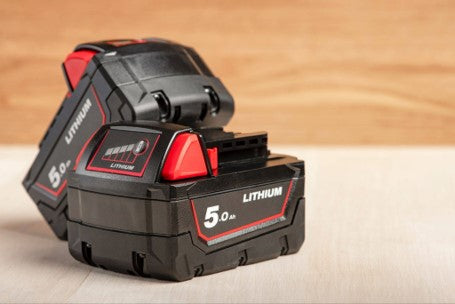

M18 REDLITHIUM XC 5.0Ah (48-11-1850)
The M18 REDLITHIUM XC 5.0Ah is a great option for daily professional applications.
The M18 REDLITHIUM XC 5.0Ah (model 48-11-1850) is the workhorse of the M18 lineup. It delivers 2.5X more runtime, 20% more power, and 2X more recharges than standard lithium-ion batteries. It weighs 1.54 lbs and recharges in approximately 60 minutes, making it one of the most balanced options for all-day professional use.
This is the battery most tradespeople default to for general jobsite applications. It powers all 300+ M18 cordless solutions and includes advanced electronics for overload protection, discharge prevention, and optimized thermal management.
M18 REDLITHIUM HIGH OUTPUT XC 6.0Ah (48-11-1865)
The M18 REDLITHIUM HIGH OUTPUT XC 6.0Ah takes roughly 35 to 65 minutes to charge, depending on the type of charger.
Step up to the HIGH OUTPUT tier and the performance gap becomes immediately noticeable. The M18 REDLITHIUM HIGH OUTPUT XC 6.0Ah (model 48-11-1865) delivers 50% more power and runs 50% cooler than standard M18 REDLITHIUM XC packs. It charges in approximately 65 minutes with a rapid charger, or 35 minutes to 80% with Milwaukee's Super Charger, and is purpose-built for power-hungry applications like reciprocating saws, grinders, and M18 FUEL hammer drills running through masonry.
The thermal efficiency here is a major advantage. Running cooler means the battery management system is less likely to throttle output under sustained load, resulting in consistent performance on demanding cuts and drilling sequences. It’s the go-to pack for contractors who push their tools hard throughout the day.
M18 REDLITHIUM FORGE XC 8.0Ah (48-11-1881)
The Milwaukee® M18 REDLITHIUM FORGE XC 8.0Ah delivers high output with a form factor that is lighter and more compact.
The Milwaukee® M18 REDLITHIUM FORGE XC 8.0Ah (model 48-11-1881) is the most technically advanced pack in the standard M18 range. It matches the power output of the HIGH OUTPUT HD12.0 at just 2.38 lbs, lighter and more portable, without sacrificing output. Charge time is approximately 83 minutes with a rapid charger, or 35 minutes to 80% with Milwaukee's M18 Dual Bay Simultaneous Super Charger.
FORGE technology integrates high-speed cooling directly into the cell architecture rather than relying on passive heat dissipation. The result is 8.0Ah of runtime with HD12.0-level power, built to run high-draw tools through extended jobsite cycles without throttling.
For full days of rotary hammer drilling, sawing through engineered lumber, or running multiple tools on site, the FORGE XC 8.0Ah is the most capable standard M18 pack before stepping up to the HD-series.
Milwaukee® M12 Battery Types
The M12 platform covers 125+ cordless solutions built for precision work, confined spaces, and trades where a compact tool profile matters. Electricians, plumbers, and HVAC technicians are the core users.
M12 batteries run at 12V and are exclusively compatible with M12 tools. Milwaukee® applies the same REDLITHIUM cell technology across the range, so even the smallest packs outperform generic lithium-ion alternatives in longevity and sustained output.
M12 REDLITHIUM HIGH OUTPUT XC 5.0Ah (48-11-2450)
The Milwaukee® M12 REDLITHIUM HIGH OUTPUT XC 5.0Ah battery pack outperforms earlier M12 REDLITHIUM XC packs in terms of power, cooling, and charging time.
The Milwaukee® M12 REDLITHIUM HIGH OUTPUT XC 5.0Ah (model 48-11-2450) is the top-tier option for the M12 platform. It delivers 25% more power and runs 25% cooler than previous M12 REDLITHIUM XC packs, with a charge time of approximately 75 minutes on a rapid charger.
It was specifically engineered to maximize output from M12 FUEL tools, bringing the 12V platform closer to what tradespeople once expected only from 18V systems. For anyone running M12 FUEL tools in demanding conditions, this is the battery to pair them with.
M12 REDLITHIUM CP2.0 Compact Battery Pack (48-11-2420)
The M12 CP2.0 works best as a backup rather than a main workhorse.
The M12 CP2.0 (model 48-11-2420) is Milwaukee®'s lightweight compact option for the M12 system, designed for applications where tool balance and maneuverability come first. It’s the battery that makes an M12 drill genuinely comfortable to use in a tight electrical panel or above a ceiling grid for extended periods.
- Compatible with Milwaukee® M12 cordless tools
- Delivers up to 2X more runtime than standard lithium-ion batteries
- Provides 20% more power than standard lithium-ion packs
- Offers 2X more recharges for extended battery life over time
- Built with REDLINK Intelligence for overload and discharge protection
The CP2.0 is best used as a secondary or backup pack rather than a primary workhorse. Its compact size makes it ideal for light-duty tasks like driving screws, tightening fasteners, or running an M12 light while you work with both hands.
Paired with the HIGH OUTPUT XC 5.0Ah as your primary pack, the CP2.0 gives you a complete M12 setup: one battery for heavy pulling, one for comfortable everyday use. That combination covers the full range of what the M12 platform is built to do.
Milwaukee® Battery Types: Comparison Chart
|
Battery Model |
Platform |
Amp Hours |
Weight |
Charge Time |
Key Advantage |
|
REDLITHIUM XC 5.0Ah (48-11-1850) |
M18 |
5.0Ah |
1.54 lbs |
~60 min |
Best all-around M18 battery for daily professional use |
|
REDLITHIUM HIGH OUTPUT XC 6.0Ah (48-11-1865) |
M18 |
6.0Ah |
Not listed |
~65 min (rapid charger) |
50% more power, 50% cooler than standard XC packs |
|
REDLITHIUM FORGE XC 8.0Ah (48-11-1881) |
M18 |
8.0Ah |
2.38 lbs |
~83 min (rapid charger) |
HD12.0 power in a compact, lighter build |
|
REDLITHIUM HIGH OUTPUT XC 5.0Ah (48-11-2450) |
M12 |
5.0Ah |
0.95 lb |
~75 min (rapid charger) |
25% more power, 25% cooler than previous M12 XC packs |
|
REDLITHIUM CP2.0 Compact (48-11-2420) |
M12 |
2.0Ah |
0.45 lb |
~20 min |
Lightest M12 option, best for balance and light-duty tasks |
The Right Milwaukee® Battery, Ready to Ship from GenuineTools
GenuineTools customers consistently highlight the same things: fast shipping, authentic products, and service that actually helps.
The right Milwaukee® battery comes down to one decision: matching the pack to the work. A 2.0Ah CP2.0 in a tight electrical panel, a 6.0Ah HIGH OUTPUT on a grinder running all day, an 8.0Ah FORGE on a rotary hammer through a full jobsite cycle, that match is what keeps your tools performing instead of holding you back.
At GenuineTools, we stock Milwaukee® REDLITHIUM batteries across both the M18 and M12 platforms, 100% authentic, factory-sealed, up to 60% off MSRP, and ship from our US warehouse within 1 business day of handling. Order the pack your work demands. We'll take care of the rest.
Shop for Milwaukee® batteries at GenuineTools today!
Frequently Asked Questions (FAQs)
Can I Use an M18 Battery on an M12 Tool?
No, M18 and M12 batteries are not cross-compatible. The physical connectors are different, and the voltage gap (18V vs. 12V) means forcing a connection would damage the tool. Each platform is self-contained: M18 batteries power M18 tools, and M12 batteries power M12 tools.
How Long Does a Milwaukee® M18 5.0Ah Battery Take to Charge?
The Milwaukee® M18 REDLITHIUM XC 5.0Ah (48-11-1850) charges in approximately 60 minutes using a compatible M18 charger. That's a fast turnaround for a high-capacity pack, which is a big part of what makes it such a practical daily-use battery. Most professionals keep two on rotation (one on the tool, one on the charger) to eliminate downtime entirely.
Is a Higher Amp-Hour Battery Always Better for Milwaukee® Tools?
Not necessarily. A higher amp-hour rating means more runtime, but it also means more weight. For overhead work, tight spaces, or precision tasks, a lighter pack like the 2.0Ah often outperforms the 8.0Ah FORGE in real-world comfort, even if the FORGE wins on raw output. Match the battery to the task: 2.0Ah for light-duty and confined spaces, 5.0Ah XC for all-day general use, 6.0Ah HIGH OUTPUT for grinders and saws, and 8.0Ah FORGE for extended high-draw cycles.
What is the Lifespan of an M12 Battery?
Milwaukee®'s M12 REDLITHIUM batteries are built to deliver 2X more recharges than standard lithium-ion packs. Real-world lifespan depends on usage habits, discharge frequency, and storage conditions, and keeping batteries at partial charge in a cool, dry location is the single biggest factor in extending cycle life. The built-in REDLINK Intelligence system also actively manages discharge to prevent premature cell wear.
Does GenuineTools Stock M18 and M12 Batteries?
Yes, GenuineTools carries Milwaukee® batteries across both platforms, including the REDLITHIUM Compact 2.0Ah, XC 5.0Ah, HIGH OUTPUT XC 6.0Ah, and FORGE XC 8.0Ah for M18, plus the HIGH OUTPUT XC 5.0Ah and CP2.0 Compact for M12.
