Key Takeaways
- Choosing between the M12 FUEL 3453-20 and M12 SURGE 2551-20 impact driver comes down to whether you need raw torque or smoother, quieter fastening.
- The FUEL delivers up to 1,500 in-lbs at 3,600 RPM for high-volume jobs, while the SURGE runs up to 2X quieter for finish work in occupied spaces.
- For framing, decking, and structural fastening, the FUEL is the faster, more aggressive pick most general contractors keep on the belt, available at GenuineTools.
- For cabinetry, trim, and noise-sensitive sites, the SURGE protects fasteners and your hearing, and GenuineTools carries it factory-sealed.
- Shop the M12 FUEL and SURGE at GenuineTools with one-business-day handling and up to 60% off MSRP.
M12 FUEL vs SURGE Impact Driver: What's the Difference?
The M12 FUEL 3453-20 impact driver uses a hammer-and-anvil mechanism for fast, high-torque fastening, while the M12 SURGE 2551-20 swaps that for a hydraulic drive that runs quieter and smoother. The FUEL hits up to 1,500 in-lbs at up to 3,600 RPM for speed work, while the SURGE trades peak torque for up to 2X less noise.
That difference shapes where each tool earns its keep, from framing and decking to finish carpentry in occupied spaces. Below, we break down the mechanics, specs, and best use cases for both. GenuineTools stocks both for pros ready to lock one in.
Authentic Professional Tools Up to 60% Off MSRP. Why Contractors & DIYers Choose GenuineTools!Get Milwaukee®, DeWALT®, Ring, etc tools at unbeatable prices. Highly rated by verified customers who trust authentic equipment. Why Choose GenuineTools:
30-Day Money-Back Guarantee: Full refund for defective or unopened items; opened items may be subject to a restocking fee. |
Key Differences
Impact Mechanism vs Hydraulic Powertrain
This is the biggest dividing line between the two tools. The M12 3453-20 FUEL uses a traditional hammer-and-anvil impact mechanism driven by Milwaukee®'s POWERSTATE Brushless Motor. When torque demand increases, the hammer strikes the anvil repeatedly to drive the fastener forward.
The SURGE replaces that entire mechanical system with the FLUID-DRIVE Hydraulic Powertrain. Hydraulic fluid absorbs and transfers the driving force, which is why it feels so different in use.
There's no hard metallic striking, just a smooth and progressive build of torque. This also means the SURGE has fewer metal-on-metal wear points, which can translate to longer tool life in high-cycle applications.

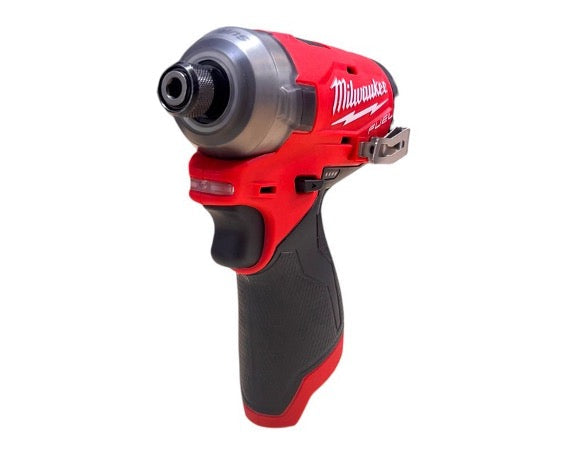

The 2551-20 M12 SURGE impact driver is significantly quieter compared to standard impact drivers.
Noise & Vibration
Milwaukee® rates the SURGE at up to 2X quieter than standard impact drivers. In practice, this is immediately noticeable the first time you pull the trigger. The mechanical M12 FUEL produces the familiar rapid-fire hammering sound that's become synonymous with impact drivers. The SURGE, by contrast, produces a lower, muffled whirring sound that's dramatically easier on the ears in enclosed spaces like offices, hospitals, or residential interiors.
Vibration follows the same pattern. The hydraulic system in the SURGE absorbs the energy that would otherwise travel up through the tool body and into your hand and wrist. For contractors running hundreds of fasteners a day, this reduction in vibration fatigue is a meaningful ergonomic advantage.
Torque & Speed
The M12 FUEL has a max speed of up to 3,600 RPM.
The M12 FUEL 1/4" Hex Impact Driver delivers up to 1,500 in-lbs of torque at a maximum speed of up to 3,600 RPM. Those are the headline numbers, and for a 12V subcompact tool, they're genuinely impressive. It's the fastest subcompact impact driver in Milwaukee®'s lineup, built specifically for high-volume fastening where speed is the priority.
The SURGE delivers up to 450 in-lbs of peak torque (substantially less than the FUEL's 1,500 in-lbs), but the way that torque is applied matters just as much as the number itself. Because the hydraulic system transfers force progressively rather than in sharp mechanical strikes, the SURGE tends to seat fasteners more consistently and with less cam-out. This is particularly useful when working with smaller screws or finish materials where an aggressive impact can split wood or strip a head instantly.
Size & Portability
Both tools are built around the same M12 subcompact platform. The M12 FUEL measures 5" in length and stands 7.6" tall when paired with the M12 CP 2.0 Ah battery. The SURGE shares a nearly identical footprint, so neither tool gives up a meaningful size advantage over the other.
Both the M12 SURGE and FUEL impact drivers run on Milwaukee®’s M12 platform.
Both fit on a tool belt, both clear tight spaces, and both feel genuinely light in hand compared to their M18 counterparts.
Use Cases of The Milwaukee M12 Fuel & Surge Impact Driver
The M12 FUEL is ideal for general construction, decking, structural fastening, and anywhere you need to drive a high volume of fasteners quickly through demanding material. Its 4-Mode DRIVE CONTROL includes a dedicated Self-Tapping Screw Mode, which gives you precise control when working with metal framing or self-tapping hardware. The REDLINK PLUS Intelligence system also protects the tool and battery from overload and overheating during sustained heavy use.
The SURGE fits jobs where noise is a real constraint: occupied buildings, hospitals, schools, hotels, or any residential remodel where you're working around people. It's also the better call for finish carpentry, cabinet installation, and light fastening work where surface protection and screw control matter more than raw speed. If you're running trim screws, Euro hinges, or drawer slides all day, the SURGE's smoother torque delivery keeps you from blowing past your target depth.
Milwaukee® M12 FUEL vs SURGE Driver: Side-by-Side Comparison
|
Feature |
M12 FUEL 1/4" Hex Impact Driver |
M12 FUEL SURGE Hydraulic Driver |
|
Model Number |
3453-20 |
2551-20 |
|
Drive Size |
1/4" Hex |
1/4" Hex |
|
Voltage |
12V |
12V |
|
Motor |
POWERSTATE Brushless |
FLUID-DRIVE Hydraulic + Brushless |
|
Max Torque |
Up to 1,500 in-lbs |
Up to 450 in-lbs |
|
Max Speed |
Up to 3,600 RPM |
Up to 3,000 RPM |
|
Noise Level |
Standard impact noise |
Up to 2X quieter |
|
Tool Length |
5" |
5.2” |
|
Tool Height (bare tool) |
6.8” |
6.8” |
|
Weight |
2 lbs |
2 lbs (bare tool) |
|
Drive Modes |
4-Mode DRIVE CONTROL + Self-Tapping Mode |
4-Mode DRIVE CONTROL + Self-Tapping Mode |
|
Battery Compatibility |
All M12 REDLITHIUM |
All M12 REDLITHIUM |
|
Best For |
General construction, high-volume fastening |
Finish work, noise-sensitive environments |
Get Your M12 Impact Driver at GenuineTools
GenuineTools carries authentic Milwaukee® M12 and M18 power tools.
Choosing between the M12 FUEL and the SURGE comes down to the work in front of you. Pick the FUEL for raw speed, structural fastening, and high-volume jobs. Pick the SURGE for finish carpentry, cabinet work, and any site where noise and vibration would otherwise wear you down by lunchtime.
Whichever way you go, we carry both the M12 FUEL and the SURGE at GenuineTools, factory-sealed and backed by our 30-day money-back guarantee. Most units ship from our US warehouse within one business day, with bulk pricing for crews stocking up. Browse our M12 listings and lock in your kit today.
Frequently Asked Questions
Is the M18 or M12 impact better?
The M18 is more powerful, but that doesn't automatically make it the better tool for every job. The M18 FUEL impact drivers deliver significantly higher torque and are built for heavy-duty construction, lag bolts, and demanding structural work. The M12 platform (including both the FUEL and SURGE) is purpose-built for speed, compactness, and all-day comfort in tighter applications.
If you're an electrician, finish carpenter, or working in confined spaces regularly, the M12 will outperform the M18 simply because you can actually use it comfortably where the job demands it.
Can the M12 FUEL and M12 SURGE Use the Same Batteries?
Yes, both tools are fully compatible with all M12 REDLITHIUM batteries. If you're running a compact 2.0 Ah pack for lightweight jobs or a higher-capacity battery for extended runtime, either tool will accept it without any adapters or workarounds.
This is one of the biggest practical advantages of staying within the M12 ecosystem. Milwaukee®'s M12 system covers 125+ tools, so your batteries work across your entire kit. One battery platform, no compatibility headaches.
What is a Milwaukee® impact driver used for?
A Milwaukee® impact driver is designed primarily for driving screws and fasteners quickly and efficiently. Unlike a standard drill, an impact driver uses rotational force combined with concussive blows (or in the SURGE's case, hydraulic torque) to drive fasteners through resistance without bogging down the motor or your wrist. They work best for decking, framing, cabinetry, drywall, and any task that involves a high volume of fasteners.
Where impact drivers fall short is in drilling clean holes, especially in wood or metal where precision matters. They can technically drive a drill bit, but the impact mechanism makes it harder to control depth and finish quality. For mixed drilling and driving tasks, most pros keep both an impact driver and a dedicated drill on their belt.
Can I use my impact driver as a drill?
Technically yes, but it's not ideal. You can chuck a 1/4" hex shank drill bit into either the M12 FUEL or the SURGE and drill a hole. It works fine for rough holes in wood, drywall, or thin metal.
However, the impact mechanism (or hydraulic action in the SURGE) activates under load, which makes it difficult to drill with the precision and control you'd get from a dedicated drill driver. For anything requiring accuracy (pilot holes, countersinks, or drilling into tile), reach for a proper drill.
What power tools are available at GenuineTools?
GenuineTools offers a wide selection of authentic power tools from premium industry brands like Milwaukee® and DeWALT®. Our selection covers core jobsite equipment including heavy-duty impact drivers, power drills, impact wrenches, grinders, and cordless ratchets. You can purchase these products as standalone tool-only options or as multi-tool combo kits that include compatible lithium batteries and chargers.
