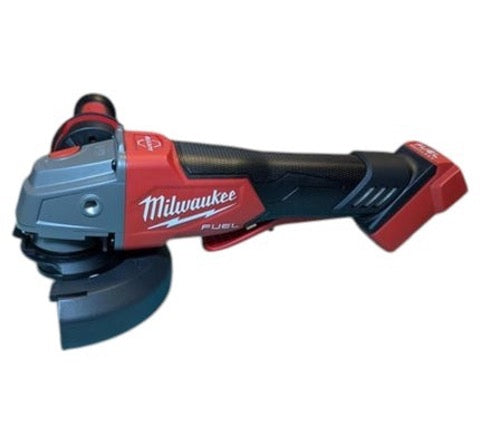

Milwaukee M18 (2880-20) Fuel Grinder Paddle Switch Replacement: Common Issues & How to Fix

Key Takeaways

• The Milwaukee® M18 2880-20 paddle switch is prone to certain issues, but it's fixable without sending the tool in for service.
• The three root causes that account for nearly all paddle switch failures include spring fatigue, dust infiltration, and impact damage from drops.
• The grinder's POWERSTATE™ Brushless Motor and 8,500 RPM performance are worth preserving; a switch replacement is far cheaper than buying a new tool.
• GenuineTools carries authentic Milwaukee® kits, replacement batteries, and grinders fit for different needs and purposes.

Your Milwaukee® 2880-20 M18 Paddle Switch Is Broken: Here's What You Need to Know

If your Milwaukee® 2880-20 has stopped working, the paddle switch is likely the culprit. But the good news is it's a replaceable part you can fix yourself without sending the tool in for service.

The 2880-20 is one of the most capable cordless grinders on the market, delivering the equivalent of 11A corded power and up to 135 cuts in 3/8" rebar on a single charge. It weighs just 3.1 lbs, spins at 8,500 RPM, and integrates smoothly with the entire M18™ system of 250+ tools.

The paddle switch is a mechanical component exposed to heavy use, jobsite debris, and repeated impact, which can wear out before the motor does. Diagnosing it correctly means you're not guessing.

Common Paddle Switch Issues

Users of the Milwaukee® 2880-20 consistently report the same handful of problems with the paddle switch. Knowing which symptom you're dealing with points directly to the fix:

• The tool won't engage at all despite a fully charged M18™ battery.
• There's excessive travel in the paddle before the motor kicks in.
• The grinder cuts out mid-use if you slightly relax your grip on the paddle.
• The lock-off button feels stiff or won't stay forward, especially with heavy gloves on.
• The switch depresses but produces no response from the POWERSTATE™ Brushless Motor.

These aren't random failures. They follow a pattern tied directly to how the switch mechanism is built and how the tool gets used on a real jobsite.

Root Causes of Milwaukee® 2880-20 M18 Paddle Switch Failure

Spring Fatigue From Repeated Trigger Cycles

The paddle switch relies on a small but critical internal spring to maintain tension and return the paddle to its resting (off) position after each release. On a busy jobsite, that spring gets cycled hundreds of times a day.

Over time, metal fatigue sets in, the spring loses its tension, and eventually it snaps. When that happens, the paddle either won't depress correctly or won't spring back, leaving the switch unable to complete the circuit.

Dust & Debris Infiltration Into Switch Contacts

Grinding generates an enormous amount of fine particulate (metal dust, concrete particles, rust), and it goes everywhere. The paddle switch housing is not hermetically sealed, which means debris works its way into the contact points over time.

Once conductive metal dust bridges the contacts or abrasive particles wear down the contact surfaces, the switch becomes unreliable. It may work intermittently, fail to engage entirely, or in rare cases, create a short circuit that triggers the tool's overload protection and shuts everything down.

Impact Damage From Drops During Battery Swaps

The 2880-20 weighs 3.1 lbs without a battery. Add an XC6.0 pack, and you're handling a tool that hits the ground hard when dropped.

The paddle switch housing sits in a vulnerable position, and a direct impact (even from a short drop onto concrete) can crack the housing, displace the spring, or bend the contact bridge inside the switch.

Troubleshooting Your Milwaukee® 2880–20 M18 Paddle Switch

You can fix the paddle switch of your Milwaukee® M18 2880-20 without needing professional help.

Paddle Switch Replacement on the M18 2880-20: Step-by-Step Guide

Before you start fixing the paddle switch of your power tool, gather what you need: a T20 Torx screwdriver, a small flathead screwdriver, needle-nose pliers, and a replacement paddle switch assembly for the 2880-20. Work on a clean, flat surface with good lighting.

Once you’re ready, take the following steps:

1. Disconnect the Battery and Engage the Lock-Off Button: Without rushing, pull the M18 battery pack straight down and off the tool. Once the battery is removed, press the lock-off button forward as if you were about to squeeze the paddle. This releases any residual tension in the switch mechanism and makes the paddle easier to work around during disassembly. Set the battery aside and away from your work area entirely.
2. Remove the Grinder Housing Screws: Use your T20 Torx screwdriver and work methodically around the body and in the switch housing section close to the paddle. Keep the screws organized as you remove them by placing them in a small container or piece of tape so nothing rolls away. Once all screws are removed, gently separate the two housing halves, and check for missed screws if there’s resistance.
3. Locate and Disconnect the Paddle Switch Assembly: With the housing open, you'll see the paddle switch assembly sitting in the handle section of the tool. Before disconnecting anything, take a photo of the wire routing and connection points with your phone so that you will have a reference when reassembling. Use your needle-nose pliers to carefully disconnect the wire terminals from the switch. Once disconnected, lift the switch assembly out of its seat. Inspect the old switch, since a broken spring, blackened contacts, or visible cracking in the housing will confirm exactly what caused the failure.
4. Install the New Paddle Switch: Drop the new paddle switch assembly into the same seat the old one occupied, ensuring the retaining tab clicks firmly into place. Reconnect the wire terminals to the new switch using your needle-nose pliers. Give each terminal a light tug to confirm it's fully seated.
5. Reassemble the Housing and Test the Trigger: Bring the two housing halves back together carefully, ensuring no wires are pinched in the seam. Hand-tighten the Torx screws first to confirm alignment, then snug them down with the screwdriver without overtightening. With the housing fully reassembled, reattach the M18 battery. Press the lock-off button forward and squeeze the paddle slowly. The motor should engage smoothly without excessive travel in the paddle before startup.

If the grinder fires up cleanly and the paddle feels firm with positive engagement, the repair is complete. Run it for 30 seconds unloaded and listen for any unusual sounds before putting it back to work.

Choose GenuineTools For Your Milwaukee® Repairs

GenuineTools carries different Milwaukee® tools.

At GenuineTools, we offer authentic Milwaukee® tools, including accessories for the 2880-20 M18 FUEL™ grinder, for your needs, available at up to 60% off MSRP and with a 30-day money-back guarantee.

In most cases, we ship orders from our U.S. warehouse within 1 business day. Bulk buyers can avail themselves of unique incentives, which makes us the ideal option for contractors who need professional-grade equipment for their crews.

GenuineTools offers transparent pricing, up to 60% off MSRP.

Our customers applaud our easy and fast service and our competitive pricing. And through our personalized customer service, we can link you to tool experts who grasp the needs of contractors and DIY users. If you’re looking to purchase Milwaukee® replacement batteries or to purchase a new 2880-20 grinder altogether, we offer clear and transparent pricing for authentic tools.

Shop Milwaukee® M18 Grinders & Replacements at GenuineTools →

Frequently Asked Questions (FAQs)

Why won't my Milwaukee® M18 2880-20 turn on even with a fully charged battery?

A failed paddle switch could be the reason, specifically a broken internal spring or dust-contaminated contacts that are preventing the circuit from completing.

Can I replace the paddle switch on the Milwaukee® M18 grinder myself, or do I need a professional?

Yes, you can replace it yourself. The repair requires a T20 Torx screwdriver, needle-nose pliers, a small flathead screwdriver, and a genuine replacement switch assembly. It's a mechanical repair with no soldering required.

What is the correct replacement part number for the 2880-20 paddle switch?

Always source your replacement switch using the 2880-20 model number as your reference point and verify the part against Milwaukee's official parts diagram before purchasing. The parts diagram for the 2880-20 is available through Milwaukee's website.

How do I use the Milwaukee® M18 2880-20 paddle switch correctly to avoid premature wear?

To start the 2880-20, grip the handle and side handle firmly, push the lock-off button fully forward with your thumb, then squeeze the paddle switch to engage the motor. To stop, simply release the paddle and wait for the disc to come to a complete stop before setting the tool down.

Does GenuineTools carry authentic Milwaukee® parts?

Yes. GenuineTools stocks authentic Milwaukee® components and models, including batteries and kits for the M18 lineup.
