Key Takeaways
- The Milwaukee® 2880-20 M18 FUEL grinder requires wheels with a 5/8"-11 arbor and a minimum RPM rating of 8,500 for safe operation.
- Proper wheel replacement requires removing the battery, using the included spanner wrench, and ensuring correct flange placement before tightening.
- Using incompatible wheels or improper installation on your Milwaukee® angle grinder can cause dangerous binding, kickback, or permanent tool damage.
- Always verify guard compatibility: use the T27 guard for grinding and the T1 clip-on guard for cutting applications.
- GenuineTools offers authentic Milwaukee® M18 grinders and batteries at up to 60% off MSRP with fast handling from our US warehouse.

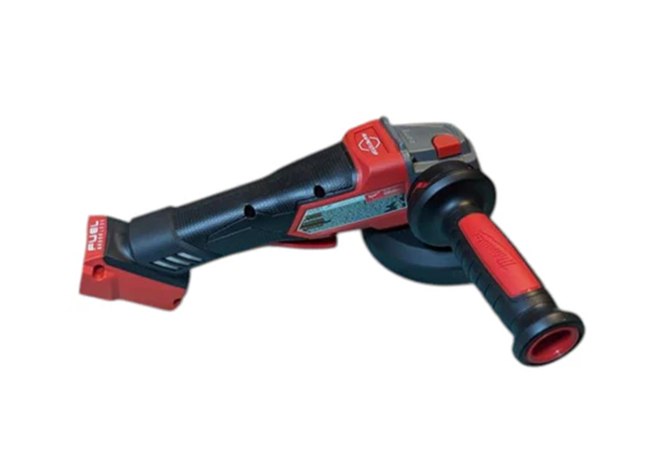

Milwaukee® M18 (2880-20) Wheel Specifications You Need to Know
Before selecting a replacement wheel for your Milwaukee® 2880-20 grinder, understanding the exact specifications is critical for safety and performance.
The Milwaukee® 2880-20 accepts wheels measuring 4-1/2" to 5" in diameter with a 5/8"-11 threaded arbor—the industry standard for professional-grade angle grinders. Wheels with different arbor sizes won't fit properly, so always verify this spec before purchasing.
The 2880-20 operates at 8,500 RPM, meaning any replacement wheel must be rated at or above this speed. Lower-rated wheels can disintegrate under high RPMs—never compromise on this specification. The grinder includes two guard options: a T27 guard for depressed-center grinding wheels and a T1 clip-on guard for flat cutting wheels. Always match your wheel type to the appropriate guard, as each is designed to direct debris safely away from the user.
Authentic Professional Tools Up to 60% Off MSRP. Why Contractors & DIYers Choose GenuineTools!Get Milwaukee®, DeWALT®, Ring, etc tools at unbeatable prices. Highly rated by verified customers who trust authentic equipment. Why Choose GenuineTools:
30-Day Money-Back Guarantee: Full refund for defective or unopened items; opened items may be subject to a restocking fee. |
Compatible Wheel Types for the Milwaukee® 2880-20
Milwaukee® includes both T27 and T1 clip-on guards with the 2880-20 for grinding and cutting applications.
1. Type 27 Grinding Wheels
Type 27 wheels feature a depressed center design for angled grinding operations. Choose aluminum oxide for general steel work, zirconia for faster stock removal, or silicon carbide for non-ferrous metals. The recessed center allows the flange nut to sit flush, improving stability during use.
2. Type 1 Cutting Wheels
Type 1 wheels are flat, thin discs for cutting metal pipes, rebar, and sheet metal. These require the T1 clip-on guard included with your 2880-20. Thickness ranges from 0.045" for precise, clean cuts to 1/8" for added durability and longer wheel life.
3. Wire Brush & Flap Disc Options
The 2880-20 also accepts wire cup brushes (5/8"-11 threaded) for removing paint, rust, and scale, and flap discs for combined grinding and finishing. Flap discs range from 40-grit (aggressive removal) to 120-grit (fine finishing).
Tools & Parts Needed for Wheel Replacement
The Milwaukee® 2880-20 includes a spanner wrench designed to fit the flange nut. Locate this in your original packaging. If missing, a universal grinder wrench compatible with 5/8"-11 spindles can be used.
Required items for wheel replacement:
- Spanner wrench (included) or universal adjustable pin spanner
- Appropriate guard (T27 for grinding, T1 for cutting)
- Inner backing flange and outer flange nut
- Replacement wheel rated for 8,500+ RPM
- Safety gear: impact-resistant glasses, gloves, and hearing protection
Before you begin, inspect your new wheel for cracks, chips, or damage. Perform a "ring test" by tapping the wheel lightly with a non-metallic object. Undamaged wheels produce a clear ring, while damaged ones sound dull.
Ensure all mating surfaces are clean, as debris between the wheel and flange can cause a dangerous imbalance during operation.
Step-by-Step Wheel Replacement Process
Always wear safety goggles, gloves, and hearing protection when operating an angle grinder.
1. Safety Preparation
Remove the battery pack completely. Never attempt wheel replacement with the battery installed. Place the grinder on a stable surface with the wheel facing up. Wear impact-resistant safety glasses and cut-resistant gloves. If replacing a recently used wheel, allow time for it to cool.
2. Removing the Old Wheel
Press and hold the spindle lock button to prevent the spindle from rotating, then use the included wrench to turn the flange nut counterclockwise. Apply steady pressure rather than jerking motions. Remove the flange nut and lift off the old wheel. Inspect the inner backing flange for damage or debris and clean if necessary.
3. Installing the New Wheel
Install the appropriate guard (T27 for grinding, T1 for cutting) before mounting the new wheel. Place the wheel on the spindle with the label facing outward, ensuring it seats against the backing flange.
For Type 27 wheels, the depressed center should face outward (away from the grinder). Type 1 cutting wheels sit flat. Position the flange nut to the wheel thickness and hand-tighten initially, then secure it using the spindle lock and wrench.
4. Testing Before Use
With the battery still removed, manually rotate the wheel to check for wobble or misalignment. Reinsert the battery and run a 30–60 second no-load test away from any surfaces. Listen for unusual sounds and check for excessive vibration, which could indicate improper installation or a damaged wheel.
Common Wheel Replacement Mistakes to Avoid
Using the Wrong Wheel Type
Using a cutting wheel for grinding—or vice versa—is extremely dangerous. Type 1 cutting wheels are thin and designed for edge contact only; side pressure can cause them to shatter. Always match wheel type to application and pair with the correct guard: T27 for grinding, T1 for cutting.
Incorrect Wheel Direction
For Type 27 grinding wheels, the depressed center must face outward (away from the tool) so the flange nut seats properly in the recess. Reversed installation causes binding, premature wear, or wheel failure. If no directional arrow exists, the printed label should face outward, away from the tool.
Improper Flange Placement
The backing flange's raised collar centers the wheel on the spindle, while the flange nut secures it. Position the flange nut according to wheel thickness as specified in your manual. Improper placement leads to wheel wobble, binding, or catastrophic failure during operation.
Choose GenuineTools for Milwaukee® Parts & Replacements
GenuineTools stocks authentic Milwaukee® M18 grinders and accessories with fast shipping and competitive prices.
Keeping your Milwaukee® 2880-20 running at peak performance starts with using the right wheels and accessories. At GenuineTools, we carry genuine Milwaukee® M18 FUEL grinders, replacement batteries, and complete grinder kits, all at prices up to 60% below retail.
Every item ships brand new in factory-sealed, original manufacturer packaging with full warranty protection. Our 30-day satisfaction guarantee means you can order with confidence, knowing returns are hassle-free if something isn't right.
Need expert advice on wheel compatibility or accessory selection? Our support team includes experienced tool specialists who can help match the right abrasives to your specific applications, whether you're grinding structural steel or cutting through rebar on the jobsite.
Most orders ship within 1 business day from our US warehouse, so downtime stays minimal. Contractors purchasing for crews benefit from volume pricing that makes outfitting an entire team more affordable.
Shop Milwaukee® M18 Grinders & Replacements at GenuineTools →
Frequently Asked Questions (FAQs)
Can I use DeWalt wheels on my Milwaukee® M18 grinder?
Yes, as long as they meet the critical specs: 4-1/2" or 5" diameter, 5/8"-11 arbor, and RPM rating of at least 8,500. Third-party wheels from reputable brands work fine. You only need to ensure the wheel type matches your application (cutting vs. grinding).
What's the difference between Type 1 and Type 27 grinding wheels?
Type 1 wheels are flat discs designed for cutting, where the edge contacts the material. Type 27 wheels have a depressed center for angled-face grinding, providing broader surface contact for stock removal. Each wheel type requires its corresponding guard: the T1 clip-on guard for cutting wheels and the T27 guard for grinding wheels.
Can I use a diamond blade on my Milwaukee® 2880-20?
Yes, diamond blades with 4-1/2" to 5" diameter and 5/8"-11 arbor are compatible. Install the T1 cutting guard and use proper dust protection. Never use water with your cordless grinder, even with wet-cutting diamond blades, as the tool isn't water-resistant.
Is it normal for the M18 grinder to spark when changing wheels?
No. Sparking during M18 grinder wheel changes indicates an electrical issue. Stop immediately and ensure the battery is fully removed. Sparks during grinding operations on metal are normal, but any sparking during maintenance is a safety hazard requiring inspection by a certified service center.
Where can I buy authentic replacement wheels for my Milwaukee® 2880-20?
GenuineTools stocks a full selection of Milwaukee® grinding and cutting wheels at competitive prices, with all products shipping factory-sealed in original packaging. Our 4.6 Trustpilot rating reflects consistent customer satisfaction with fast shipping, authentic products, and responsive service. Every purchase is backed by our 30-day satisfaction guarantee, so you can shop with confidence knowing you're getting genuine Milwaukee® quality.
