Key Takeaways
- LED flash patterns serve as diagnostic tools to identify battery status, thermal protection events, and internal electronics faults.
- Battery failures or low voltage are the most common causes of saw issues and should be investigated before any other repairs.
- A lit worklight without motor engagement typically indicates the tool has entered protection mode due to overheating or an electronics fault.
- Most common error codes can be resolved quickly by charging the battery or performing a soft reset of the tool's electronics.
- GenuineTools provides authentic Milwaukee® M18 band saws and compatible accessories, offering factory-sealed products and professional support at competitive prices.
Milwaukee® M18 Band Saw Light Issues: What You Need to Know
The Milwaukee® M18 Fuel Deep Cut Band Saw (2729-20) uses its onboard LED worklight as a diagnostic tool to communicate specific mechanical and electrical faults. When the saw flashes or fails to start, it typically indicates one of three primary issues: a depleted REDLITHIUM battery, a triggered thermal protection circuit, or an internal electronics assembly failure. Understanding these light patterns allows users to quickly differentiate between a simple charge requirement and a hardware malfunction.
To resolve most common issues, first ensure the battery is fully charged on an M18 charger to clear low-voltage cutoffs. If the LED remains lit but the motor won't engage, the tool has likely entered a safety "protection mode" due to overheating or a failed trigger switch. You can often perform a soft reset by removing the battery for 30 seconds, which clears the protection circuit and restores functionality if no permanent component damage has occurred.
Authentic Professional Tools Up to 60% Off MSRP. Why Contractors & DIYers Choose GenuineTools!Get Milwaukee®, DeWALT®, Ring, etc tools at unbeatable prices. Highly rated by verified customers who trust authentic equipment. Why Choose GenuineTools:
30-Day Money-Back Guarantee: Full refund for defective or unopened items; opened items may be subject to a restocking fee. |
What Do Milwaukee® M18 Light Issues Commonly Mean?
Battery Needs Charging
The LED flashing when you pull the trigger is typically the tool's way of indicating a battery or protection issue. The M18 system has a low-voltage cutoff that prevents the motor from drawing power when the battery drops below a safe threshold. This protects both the battery cells and the motor windings from damage.
How To Fix
- Place the battery on a Milwaukee® M18 charger (such as the M18 and M12 Multi-Voltage Charger 48-59-1812).
- Let it complete a full charge cycle before reinserting the battery into the tool.
- If the battery charges normally and the code clears, no further action is needed.
- If the battery won't accept a charge or the fault returns immediately after charging, the battery is likely failing and needs replacement.
Error Code Detected
An error code detected by the tool's electronics can indicate a general fault condition. This is a broader diagnostic signal that can be triggered by several things: an over-current condition from forcing the blade through material that's too dense, a brief thermal event, or a momentary circuit interruption.
How To Fix
- Remove the battery from the tool and wait 30 seconds. This performs a soft reset of the tool's electronics.
- Reinsert the battery and test the saw.
- If the error code returns, check whether the blade is binding or the tension is set correctly.
- A properly installed blade should be firmly locked in place using the tension lock handle. Turn it 180° clockwise to secure the blade on the pulleys.
Electronics Assembly Fault
The most serious diagnostic signal you can see on the Milwaukee® M18 band saw is one that persists regardless of battery state or cool-down time. This signals a fault within the electronics assembly itself, typically the main circuit board or a sensor that feeds data to it.
An electronics assembly fault is different from a battery or error code issue because it won't clear with a reset or a fresh battery. The saw might behave inconsistently, working briefly before failing again without warning.
How To Fix
Diagnosing this at home requires a multimeter to test continuity through the trigger switch and thermal cutoff. If the trigger switch shows no continuity when depressed, it has failed and needs replacement. If continuity is present through the switch but the motor still doesn't receive power, the control board is the likely failure point.
- Use a multimeter set to continuity mode. Probe across the trigger switch terminals while depressing the trigger
- No continuity reading with trigger fully depressed = failed trigger switch
- Continuity present but motor unresponsive = suspect the main control board or thermal cutoff switch
- Visible burn marks or a melted smell near the electronics housing = control board damage requiring replacement
- Intermittent operation that worsens over time = loose internal wiring harness connection or a failing electronics assembly
How Do I Fix a Trigger or Electronics Failure (LED Light On But No Movement)?
This is the symptom that confuses most people. The LED worklight powers on when you pull the trigger, which means the battery has charge and the connection is good, but the blade refuses to move. The LED and the motor are on separate circuits inside the M18 band saw, so a lit work light does not confirm the motor circuit is functioning.
What you're likely dealing with is either a failed trigger switch, a tripped internal thermal cutout, or a fault in the motor control board.
How To Fix
- Check whether the tool feels warm near the motor housing.
- If it does, the thermal protection switch has likely tripped after an overload. Remove the battery and let the tool cool for 15 to 20 minutes, then retry.
- If the tool is cool and the blade still won't engage, the trigger switch assembly is the next suspect.
- Test the trigger switch with a multimeter set to continuity mode. No continuity when the trigger is fully depressed means the switch has failed.
- A failed trigger switch requires replacement; a qualified repair technician can handle this if you're not comfortable doing it yourself.

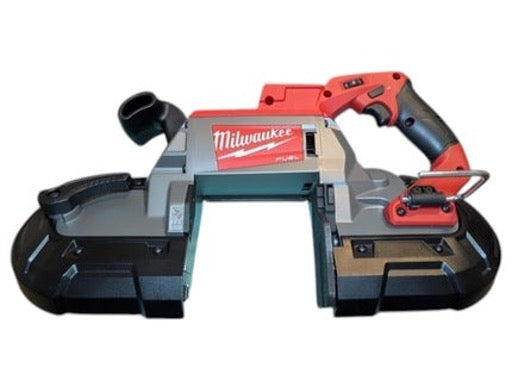

The light of the Milwaukee® M18 2729-20 Band Saw could indicate battery, electronic assembly, or thermal issues.
How Do I Troubleshoot the Milwaukee® M18 Band Saw Light?
|
LED Behavior |
Most Likely Cause |
First Fix to Try |
|
Rapid flashing on trigger pull |
Low or depleted battery |
Charge battery fully on genuine Milwaukee® charger |
|
Light on, motor won't engage |
Thermal protection / overload error |
Remove battery, cool tool 15–20 minutes, reset |
|
Erratic or inconsistent flashing |
Electronics assembly fault |
Test trigger switch continuity with multimeter |
|
Solid light, no response to trigger |
Failed trigger switch or control board |
Check switch continuity, inspect for burn marks |
|
Light works, saw cuts out mid-use |
Overheating or motor overload |
Allow cooldown, remove battery, let tool rest before retrying |
|
No light at all |
Dead battery or broken connection |
Clean terminals, test with a known good battery |
GenuineTools Stocks Milwaukee® M18 Band Saws
Various Milwaukee® M18 band saws are available at GenuineTools.
GenuineTools sources authentic Milwaukee® M18 band saws and batteries directly from trusted distributors. All our units arrive factory-sealed in their original retail packaging, so you're not gambling on compatibility or authenticity.
If you need the Milwaukee® M18 FUEL Deep Cut Band Saw 2729-20 or a replacement M18 REDLITHIUM battery pack to eliminate a persistent flash code, we have the inventory to back it up with fast shipping.
GenuineTools ships fast and offers competitively priced authentic items.
Every order ships from our US warehouse with 1 business day handling. All orders are factory-sealed and brand-new in original retail packaging. Our team knows these tools, so if you have questions about compatibility or which battery to pair with your saw, you get answers from people who actually use them.
And if anything arrives wrong, our 30-Day Money-Back Guarantee covers you.
Shop for Milwaukee® M18 band saws at GenuineTools today!
Frequently Asked Questions (FAQs)
Why is the light flashing on my Milwaukee® band saw?
A flashing light on the Milwaukee® M18 band saw is the tool's way of communicating a protection event. The most common causes are a low or depleted battery triggering the undervoltage protection circuit, an overload or thermal event shutting down the motor while keeping electronics active, or a fault detected in the trigger switch or control board.
How do I reset the electronics on my Milwaukee® M18 band saw?
Remove the M18 battery from the tool, pull and release the trigger once to clear any stored charge in the protection circuit, then set the tool aside for 15 to 20 minutes. Reinsert a fully charged battery and test. This procedure clears thermal protection events and most overload-triggered error codes. If the error returns immediately after reset, an internal component fault is the likely cause.
Why does my Milwaukee® M18 band saw light up but not run?
When the LED is active but the motor won't engage, the saw has entered a protection mode. This happens when the thermal cutoff switch has tripped due to overheating, when an overload condition was detected during the last use, or when the trigger switch has failed. The LED staying on confirms the battery and basic electronics are functional. The issue is specifically with the circuit that delivers power to the motor.
Will a faulty battery trigger error light codes on the Milwaukee® M18 band saw?
Yes. A battery with degraded cells, damaged terminals, or internal cell imbalance can absolutely trigger error light behavior on the Milwaukee® M18 band saw. The tool's onboard electronics monitor incoming voltage continuously, and if the battery drops below the minimum operating threshold (even briefly during a high-load cut) the protection circuit activates and produces the same LED behavior as an internal fault. Always rule out the battery completely before diagnosing the tool itself.
Is the Milwaukee® M18 2729-20 Band Saw available at GenuineTools?
Yes. GenuineTools stocks the Milwaukee® 2729-20 along with compatible M18 batteries, all sourced directly from trusted distributors and shipped factory-sealed in their original retail packaging.
