Key Takeaways
- Most Milwaukee® M18 drills stop working for one of five fixable reasons: a dead battery, a centered trigger selector, worn motor brushes, a worn chuck, or thermal overload from running gear 2 too hard.
- These five failures can be diagnosed in under a minute without opening the tool, so always rule out the simple causes before assuming the drill is dead.
- For battery, trigger, and chuck problems, the fix is usually free: charge or swap the pack, push the forward/reverse selector off-center, or tighten the keyless chuck until it ratchets.
- When the motor or gearbox has failed on an out-of-warranty M18, repair rarely pencils out, and a factory-sealed replacement from GenuineTools is the smarter call.
- GenuineTools stocks authentic Milwaukee® M18 drills and REDLITHIUM batteries at up to 60% off retail, with one-business-day shipping when troubleshooting can't save your tool.

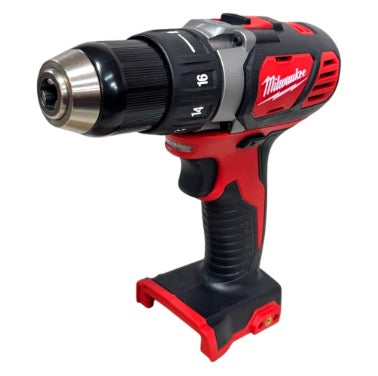

Your Milwaukee® M18 Drill Stopped Working: Here's What's Wrong
Your Milwaukee® M18 drill probably stopped working for one of five reasons: a dead or aging battery, a centered forward/reverse selector that locks the trigger, worn motor brushes, a worn chuck that won't grip the bit, or thermal overload from heavy-load use in gear 2. These issues can be diagnosed in under a minute.
However, a major motor or gearbox failure on a tool past warranty usually means it's time for a replacement rather than a repair. GenuineTools stocks authentic, factory-sealed Milwaukee® M18 drills and REDLITHIUM battery packs when a fix no longer makes sense. Below, we walk through each issue and the exact fix step by step.
Authentic Professional Tools Up to 60% Off MSRP. Why Contractors & DIYers Choose GenuineTools!Get Milwaukee®, DeWALT®, Ring, etc tools at unbeatable prices. Highly rated by verified customers who trust authentic equipment. Why Choose GenuineTools:
30-Day Money-Back Guarantee: Full refund for defective or unopened items; opened items may be subject to a restocking fee. |
What Are the Most Common Issues That Cause M18 Drills to Stop Working & How to Fix Them?
Milwaukee® M18 drills can fail in a few predictable ways. Understanding which symptom you're dealing with narrows down the fix quickly.
1. The Drill Has No Power
The most-reported M18 issue: you pull the trigger, and nothing happens. In most cases, the battery is dead or not making proper contact with the tool. Milwaukee® M18 batteries can lose charge faster than expected in cold weather or once the pack ages.
There's also a less obvious cause. Milwaukee®'s One-Key app has a tool lockout feature that lets users remotely disable a drill. If your drill was set up with One-Key and got locked, it will appear completely unresponsive even on a fully charged battery.
How to Fix It
- Remove the battery, charge it on a Milwaukee® M18 charger for at least one hour, then reinsert and test the drill.
- If it still won't power on, try a second known-good M18 battery to rule out a faulty pack.
- If both batteries fail, open the One-Key app, go to the tool's detail screen, and turn off Tool Lock.
- If the drill still won't respond, the issue is likely internal and requires professional repair.
Follow this simple troubleshooting guide: remove the battery, charge it for at least one hour, then place it back.
2. The Trigger Won't Pull
If the trigger feels stuck or won't depress, the drill is probably fine. The likely cause is the forward/reverse selector switch, the small button just above the trigger on the side of the drill body. When it's centered between forward and reverse, it acts as a trigger lock.
How to Fix It
- Check the selector on both sides of the drill. If the button protrudes equally from both sides, it's in the locked center position.
- Push it firmly to one side to select forward or reverse. The trigger should work immediately.
3. Motor Loses Speed Under Load
The signs: the drill bogs down under load, speed drops in dense material, or it feels weaker than usual on a fresh battery. This usually points to a battery that can't sustain output or worn motor brushes on older brushed M18 motors.
Cold also plays a role. M18 REDLITHIUM batteries handle harsh conditions, but extreme cold limits peak current, so below freezing, the battery is the likely culprit.
How to Fix It
- Switch to gear 1 for demanding materials or large fasteners. Gear 1 delivers high torque; gear 2 delivers high speed. Using the wrong one strains the motor.
- Make sure the battery is fully charged and warm before heavy use.
- With brushed M18 models, remove the brush caps, check the brush length, and replace the brushes with manufacturer-spec brushes if worn.
4. The Drill Shuts Off Mid-Use
If your M18 cuts out completely during operation, not just slowing down, but stopping, the tool's thermal overload protection has likely kicked in. This is a built-in safeguard that shuts the motor down to prevent damage when internal temperatures climb too high, usually from driving large fasteners or boring into hardwood while running in gear 2.
It's a protective feature, not a failure. But repeated thermal shutdowns are a warning sign that the motor or gearbox is being pushed beyond its limits, and ignoring them can lead to permanent damage.
How to Fix It
- Stop using the drill immediately and let it cool for 10 to 15 minutes before pulling the trigger again.
- Switch to gear 1 before resuming — this is the single most effective way to prevent repeat shutdowns.
- If the drill triggers thermal overload repeatedly, even on light tasks or in gear 1, the motor windings or internal components may be compromised and need professional inspection.
5. Drill Bit Keeps Slipping Out of the Chuck
A drill bit that won't stay seated is both frustrating and a safety hazard. On the Milwaukee® M18, this usually comes down to a worn or damaged chuck. The keyless chuck uses internal jaws to clamp the bit, and those jaws can wear down over time, especially with heavy use of large-diameter bits.
Another common cause is not tightening the chuck fully. The M18's keyless chuck needs a firm, deliberate twist. Grip the collar and rotate it until you feel and hear the ratcheting mechanism click, which confirms the jaws are locked.
The bit itself can also be the problem. Worn shanks, especially on older bits, won't seat properly even in a healthy chuck. Check the shank for damage, flat spots, or wear before blaming the chuck.
How to Fix It
- Tighten the chuck firmly until you hear the ratcheting click. If the bit still slips, the chuck likely needs replacing.
- Remove the retaining screw inside the chuck (it's left-hand threaded, so turn clockwise to loosen).
- Unscrew the chuck from the spindle and install a replacement rated for your M18 model.
If a drill bit is loose, there could be issues with the chuck.
Troubleshooting an M18 Drill: Summary Table
|
Symptom |
Most Likely Cause |
First Fix |
|
No power at all |
Dead battery or One-Key lock enabled |
Charge the battery or check the One-Key app |
|
Trigger won't pull |
Forward/reverse selector in center position |
Push the selector firmly to one side |
|
Speed loss under load |
Wrong gear, weak battery, or worn brushes |
Switch to gear 1, charge battery |
|
Drill shuts off mid-use |
Thermal overload triggered |
Let the drill cool for 10–15 minutes |
|
Bit slips out of chuck |
Worn chuck jaws or loose tightening |
Re-tighten the chuck or replace the chuck |
When DIY Fixes Aren't Enough: Is It Time to Get a Replacement Drill?
Not every M18 problem is worth repairing. If your drill is older, has wear across multiple components, or the repair cost approaches the price of a new unit, replacing it is the smarter call. Milwaukee® M18 drills come with a 5-year limited warranty, so if your drill is within that window and the failure wasn't caused by abuse or unauthorized modification, a warranty claim should be your first step.
But replacement makes more sense than repair in a few clear cases, including:
- The brushless motor has failed, and the tool is out of warranty
- The gearbox needs a full internal rebuild
- Multiple components are worn at the same time
- Repair cost runs past 50% to 60% of a comparable new M18
- The housing or internal frame has physical damage.
If the drill is relatively new and the issue is isolated, like a bad chuck, worn brushes, or a faulty battery, repair is almost always worth it. The M18 platform's long-term value lies in battery compatibility across more than 250 tools, so keeping your drill running protects that investment.
Milwaukee® M18 Drills: Available at GenuineTools
Most M18 issues come down to a quick fix at the bench, but when wear runs deep or repair costs climb past replacement value, swapping the tool is the smarter call. That's where GenuineTools steps in. We stock the full authentic Milwaukee® M18 drill lineup, factory-sealed in original retail packaging, at up to 60% off MSRP, far beyond the 10–30% discounts most competitors offer.
Contractors and DIYers consistently rate GenuineTools highly for authentic tools, genuine customer support, and fast shipping.
Most orders ship within one business day from our US warehouse, and our team of real tool experts is available for personalized support before and after your purchase. Bulk buyers receive special incentives, and every purchase is backed by our 30-Day Money-Back Guarantee on defective or unopened items. Shop authentic Milwaukee® M18 drills at GenuineTools today and get the genuine performance your job demands, without the retail markup.
Shop for Milwaukee® drills at GenuineTools today!
Frequently Asked Questions (FAQs)
Why is my Milwaukee® M18 drill not spinning?
The most common reason an M18 drill won't spin is a discharged battery or the forward/reverse selector switch sitting in the center/locked position. If both check out, confirm the battery is fully seated, test a second known-good M18 pack, and check the One-Key app for an active Tool Lock. If none of those steps restore function, the drill likely has an internal mechanical issue and needs professional service.
Why does my Milwaukee® M18 drill lose power under load?
Power loss under load almost always comes down to one of three things: a battery that can't sustain current output, the drill operating in the wrong gear for the task, or worn motor brushes on older brushed-motor M18 models. Switch to gear 1 for high-torque applications, make sure the battery is fully charged and in good health, and inspect the brushes if the drill has significant hours on it. Repeated thermal shutdowns under load are a strong sign that the motor or battery needs attention.
How do I reset my Milwaukee® M18 drill?
The Milwaukee® M18 drill doesn't have a dedicated reset button. If the tool shut down because of thermal overload protection, the reset is simply letting it cool for 10 to 15 minutes before pulling the trigger again. For One-Key compatible drills that have been remotely locked, open the One-Key app, go to the tool's detail screen, and turn off the Tool Lock toggle.
Can a bad battery cause a Milwaukee® drill to stop working?
Yes, and it's the single most common cause of an M18 drill appearing completely dead. A battery that has failed internally, lost capacity over many charge cycles, or been damaged by extreme temperatures may show indicator lights while still failing to deliver enough current to run the motor. Always test a second known-good battery before diagnosing any other component.
Does GenuineTools stock batteries for an M18 drill?
Yes, GenuineTools stocks Milwaukee® M18 REDLITHIUM battery packs across the full lineup, including the Compact 2.0Ah for lighter tasks, the XC 5.0Ah for everyday drilling, and the HIGH DEMAND 9.0Ah and HIGH OUTPUT 12.0Ah for demanding job-site use. All M18 REDLITHIUM packs are cross-compatible across the entire M18 platform, so any pack you buy works with every M18 tool you own. If you're losing power during demanding tasks, moving up to a higher-capacity pack like the XC 5.0Ah or HIGH DEMAND 9.0Ah will make a noticeable difference in both runtime and torque consistency.
