Milwaukee Right Angle Impact Wrench 1/2 vs 3/8: Differences & How to Choose

Authentic Professional Tools Up to 60% Off MSRP. Why Contractors & DIYers Choose GenuineTools! Get Milwaukee®, DeWALT®, Ring, etc tools at unbeatable prices. Highly rated by verified customers who trust authentic equipment. Why Choose GenuineTools: 100% authentic and factory-sealed tools Brand-new inventory in the original retail packaging Save up to 60% off retail (competitors offer only 10%–30% off) Bulk buyers are especially welcome with special incentives Personalized customer service from real tool experts 1 business day handling for all orders from our US warehouse 30-Day Money-Back Guarantee: Full refund for defective or unopened items; opened items may be subject to a restocking fee. Shop GenuineTools Now →

Core Specs Key Differences

Torque Output

Both the Milwaukee® M12 FUEL™ 2565-20 and 2564-20 deliver up to 220 ft-lbs of nut-busting torque. Milwaukee® positions these as the most powerful cordless right angle impact wrenches on the market at their respective drive sizes.

The torque is identical across both models, so this spec alone won't be your deciding factor. However, it does tell you that neither tool is underpowered for professional use.

The 1/2" 2565-20 impact wrench has the same head profile and torque output as the 2564-20 model.

Head Profile & Body Length

This is where the two models start to pull apart. The 1/2" model (2565-20) has a head profile of just 2.2 inches, matching the 3/8" model and giving both tools strong access in extremely confined spaces.

The 3/8" model (2564-20) shares the same 2.2-inch head profile and pairs it with a 14.17-inch-long body design that improves control. This makes it particularly useful when you're working in areas where you need more than just access; you need stability.

IPM & RPM

Both models run at 3,600 impacts per minute (IPM) and a maximum of 3,000 RPM. These specifications are consistent across the M12 FUEL™ right angle lineup. They reflect Milwaukee®'s focus on keeping the platform balanced, delivering enough speed for productivity while maintaining control to help avoid overdriving fasteners in precision applications.

Weight & Size

Both models are nearly identical on the scale, with the 1/2" 2565-20 coming in at 2.85 lbs and the 3/8" 2564-20 at 2.82 lbs (tool only, no battery). For all practical purposes, you won't notice the 0.03 lb difference in hand, which means weight shouldn't factor into your decision between the two.

Dimensions are similarly close. The 2565-20 measures 13.28 in. long, 2.98 in. tall, and 2.32 in. wide, while the 2564-20 comes in slightly longer at 13.32 in., a touch shorter at 2.81 in. tall, and the same 2.32 in. wide. Both share the slim, narrow body profile that defines this lineup, so either tool will fit comfortably in the same tight spaces a standard pistol-grip impact wrench can't reach.

4-Mode DRIVE Control

Both the 1/2" and 3/8" M12™ FUEL™ right angle impact wrenches feature Milwaukee®'s 4-Mode DRIVE CONTROL™ system, which gives you real control over how the tool delivers power. This is how the 4-Mode DRIVE CONTROL™ system works:

• Mode 1: Low speed for precision fastening
• Mode 2: Medium speed for general applications
• Mode 3: High speed for maximum productivity
• Mode 4: Auto Shut-Off in forward, Bolt Removal Mode in reverse

The three speed modes let you dial in the right amount of force for the job. Mode 1 is ideal for seating delicate fasteners or working with softer materials where stripping is a real risk. Mode 2 handles everyday fastening tasks. Mode 3 opens up the full power of the POWERSTATE™ brushless motor when you need maximum speed.

Mode 4 is where things get useful for precision work, and it does double duty depending on direction. Running forward, Auto Shut-Off caps torque at 15 ft-lbs once the tool detects resistance consistent with a fully driven fastener, effectively eliminating the risk of over-tightening. Running in reverse, Bolt Removal Mode drastically slows the RPMs once a fastener breaks loose, giving you more control instead of letting a freed bolt spin off unchecked.

This feature is consistent across both the 2565-20 and 2564-20 models, so it won't be a differentiator between the two, but it's a major reason both tools punch above their weight class compared to competing right angle impact wrenches.

Socket Compatibility

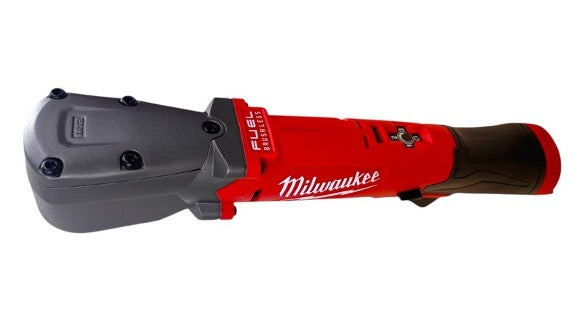

The 3/8“ 2564-20 right angle impact wrench’s socket size makes it more common for trade and lighter mechanical uses.

The drive size directly determines which sockets each tool accepts. The 2565-20 uses 1/2" drive sockets, which are the industry standard for heavy automotive and industrial fastening. The 2564-20 uses 3/8" drive sockets, which are more common in lighter mechanical and trade applications.

You cannot interchange sockets between the two without an adapter, so if your existing socket set is built around one drive size, that should factor heavily into your decision.

Applications

The 1/2" model (2565-20) is the stronger choice for automotive work, like suspension components, wheel bolts, and drivetrain fasteners, where 1/2" drive sockets are standard. Its 2.2" head profile makes it particularly effective when you're working inside wheel wells or around engine mounts with almost no clearance.

The 3/8" model (2564-20) is better suited to HVAC, plumbing, and general mechanical assembly where medium-duty fasteners dominate, and the longer body profile gives you more control in structured, repeatable tasks.

Both tools let you reach fasteners that would typically require socket extensions with a standard pistol-grip impact wrench.

Milwaukee® M12 FUEL™ 1/2" vs 3/8" Right Angle Impact Wrench: Comparison Table

How Should You Choose Which Milwaukee® Right Angle Impact Wrench to Buy?

Start with your socket set. If your existing collection is built around 1/2" drive sockets (which is common for automotive DIYers and home mechanics), the 2565-20 is the logical choice.

If your work leans toward trade applications, HVAC, or general mechanical tasks where 3/8" drive is the norm, the 2564-20's longer body actually works in your favor by giving you better leverage and control.

Both tools perform at the same torque level, so you're really choosing based on drive compatibility, the specific spaces you're working in, and the type of fasteners you encounter most.

Get the Right Milwaukee® Right Angle Impact Wrench for Your Job at GenuineTools

Both 1/2" and 3/8" right angle impact wrenches are available at GenuineTools.

“★★★★★ Fast shipping and brand new tool at a great price. You delivered everything as promised.” — Karen Peck’s review on Trustpilot.

Both the 2565-20 and 2564-20 deliver the same 220 ft-lbs of torque, so your choice really comes down to drive size, head clearance, and the kind of work you do most. Match the tool to your sockets and your tightest workspace, and either model will pull its weight.

At GenuineTools, we stock both Milwaukee® M12 FUEL right angle impact wrenches at up to 60% off MSRP, factory-sealed and shipped from our US warehouse as soon as possible. If you're outfitting a shop or upgrading a personal kit, browse our Milwaukee® impact wrench lineup to find the right fit.

Frequently Asked Questions (FAQs)

Can I use the same sockets on both the 1/2" and 3/8" Milwaukee® right angle impact wrenches?

No, the drive sizes are different, so the sockets are not interchangeable without an adapter. The 2565-20 accepts 1/2" drive sockets, and the 2564-20 accepts 3/8" drive sockets. If you already own a full socket set in one drive size, stick with the matching model to avoid needing adapters, which can add length and reduce the tool's effectiveness in tight spaces.

Do the 2565-20 and 2564-20 models use the same M12 batteries?

Yes. Both the 2565-20 and 2564-20 are compatible with all M12™ REDLITHIUM™ battery packs. The REDLINK PLUS™ intelligence system in each tool communicates with the battery to optimize performance and prevent damage from overload or overheating. If you're already part of the M12™ ecosystem (which includes over 125 tools), your existing batteries will work straight out of the box.

Which Milwaukee® right angle impact wrench is better for automotive work?

The Milwaukee® M12 FUEL™ 1/2" Right Angle Impact Wrench (2565-20) is the better choice for most automotive jobs. Here's why it stands out:

• 1/2" drive sockets are the automotive standard for wheel bolts, lug nuts, and drivetrain fasteners
• The 2.2" head profile reaches inside wheel wells and tight engine bays where pistol-grip wrenches can't fit
• 220 ft-lbs handles most automotive fasteners a DIYer will encounter
• Auto shut-off mode caps output at 15 ft-lbs to protect sensitive components during reassembly

For light maintenance, the 3/8" model's longer body offers better control.

Is the head profile the same on both the 1/2" and 3/8"  Milwaukee® right angle impact wrenches?

Yes. Both the 1/2" model (2565-20) and the 3/8" model (2564-20) share a 2.2-inch head profile, which is compact compared to traditional pistol-grip impact wrenches. That shared profile means tight-space access is essentially identical between the two tools, so your choice should come down to drive size and body length rather than head clearance.
