Key Takeaways
- The M12 soldering iron should normally heat up in under 18 seconds, so if it fails to do so, something is preventing proper power delivery.
- Battery issues are the most common cause, including weak or degraded batteries, dirty terminals, or batteries operating outside safe temperature ranges.
- A blown thermal fuse will stop the tool from heating altogether, and since it can’t be reset, the only fix is professional replacement.
- Heating element failures can cause slow heating, reduced performance, or no heat at all, even if the LED shows normal operation.
- GenuineTools provides authentic Milwaukee® M12 Soldering Iron replacements with full manufacturer warranty and technical expertise to help determine when replacement offers better value than repair, backed by a 30-day satisfaction guarantee.
Understanding Normal M12 Soldering Iron Operation

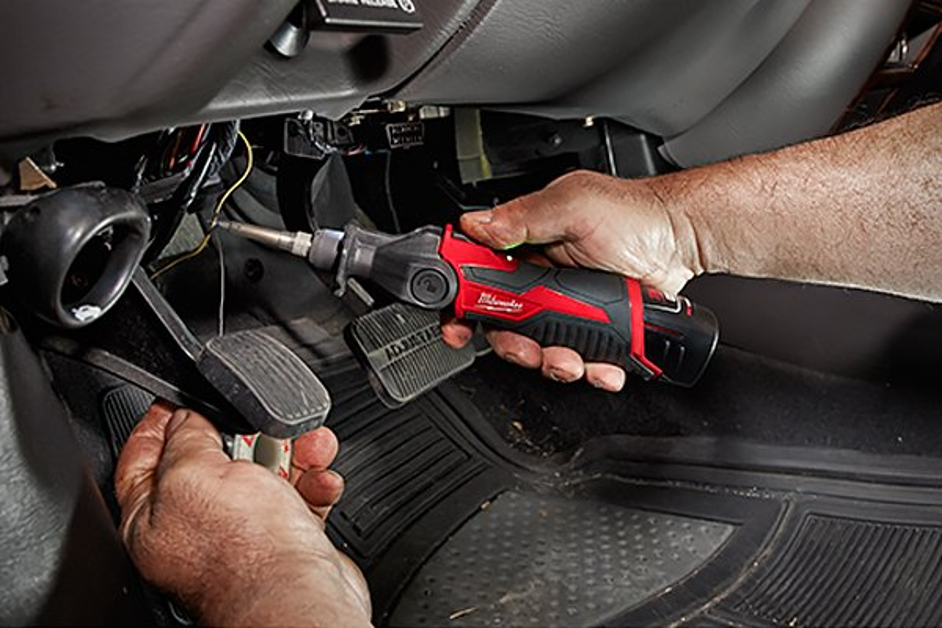

Before diagnosing heating problems, it's essential to understand how the Milwaukee® M12 Soldering Iron (2488-20) operates under normal conditions. This professional-grade tool should reach operational temperature in under 18 seconds from a cold start, delivering consistent 90-watt power output throughout its runtime.
The REDLINK Intelligence system provides real-time status updates through LED indicators, eliminating guesswork about the tool's operational state. When functioning properly, the iron maintains a steady temperature for up to 40 minutes on a single M12 Compact Battery Pack, making it reliable for extended soldering sessions.
Authentic Professional Tools Up to 60% Off MSRP. Why Contractors & DIYers Choose GenuineTools!Get Milwaukee M18 and DeWalt 20V MAX tools at unbeatable prices. Highly rated by verified customers who trust authentic equipment. Why Choose GenuineTools:
30-Day Money-Back Guarantee: Authentic tools or full refund, no questions asked. |
Initial Diagnosis & Safety Precautions
Understanding LED Indicator Patterns
The REDLINK Intelligence system communicates tool status through three distinct LED states:
- Green LED: Indicates the iron has reached operational temperature and is ready for soldering work. This should appear within 18 seconds of activation.
- Red LED: Shows the tool is turned off but the tip remains dangerously hot. Never touch or handle the tip when the red LED is illuminated.
- No LED: Confirms the tool has cooled to safe storage temperature and can be handled safely.
Essential Safety Steps
Before attempting any troubleshooting, ensure the tool is completely cool and the battery is removed. Never disassemble the iron while it's warm or connected to power. Work in a well-ventilated area and have appropriate safety equipment available, including safety glasses and insulated tools.
Always verify that replacement batteries are genuine M12 REDLITHIUM packs, as counterfeit batteries can cause heating failures and safety hazards.
Safety always comes first when troubleshooting any power tool, no matter how eager you are to get back to your project.
Common Causes of Heating Failure
Battery-Related Issues
Battery problems cause the majority of M12 soldering iron heating failures. The 90-watt power output requires substantial current draw, making the tool sensitive to battery condition and connection quality.
Dead or Degraded Battery: Batteries naturally lose capacity over time and through repeated charge cycles. A battery that powers other M12 tools adequately may lack sufficient capacity for the high-current demands of soldering operations. Test the suspect battery in another high-draw M12 tool to verify its condition.
Poor Battery Connection: Dirt, corrosion, or damage to battery terminals prevents proper electrical contact. Even minor connection issues can cause intermittent heating or complete failure. Clean terminals with a dry cloth and inspect for physical damage or corrosion buildup.
Temperature-Related Battery Protection: M12 REDLITHIUM batteries include thermal protection that prevents operation in extreme temperatures. Batteries that are too hot or cold will not deliver power until they reach acceptable temperature ranges (typically 32–104°F).
Thermal Fuse Protection System
The M12 soldering iron incorporates thermal protection to prevent overheating damage and ensure user safety. This system includes thermal fuses that permanently open when exposed to excessive temperatures.
Thermal Fuse Function: These safety devices protect the heating element and internal electronics from damage caused by overheating. Once activated, thermal fuses cannot be reset and require professional replacement. The thermal fuse typically activates when internal temperatures exceed 250°F above normal operating temperature.
Common Activation Causes:
- Prolonged operation without adequate cooling periods
- Blocked ventilation ports preventing heat dissipation
- Operating in ambient temperatures above 100°F
- Using incorrect tips that cause excessive power draw
- Manufacturing defects in thermal management systems
Identifying Thermal Fuse Activation: When the thermal fuse activates, the tool will show no LED response when attempting to power on, or may briefly illuminate before shutting down. Unlike battery issues, fresh batteries will not resolve thermal fuse problems.
Heating Element Failure
The heating element is what creates the heat for soldering, and over time it can wear out. Repeated heating and cooling eventually weakens it, and heavy-use tools usually fail after 500–800 hours. Physical damage, like a hard drop or bending the head, can also break the coils inside. Sometimes it’s just loose or corroded wiring cutting off power.
When the element goes bad, the LEDs still work, but the iron won’t heat properly. It may stay cold or take much longer than the usual 18 seconds to reach temperature.
REDLINK Intelligence System Malfunctions
The REDLINK system controls heat, battery communication, and safety, so if it fails, the tool won’t heat correctly. A faulty temperature sensor might shut it down too early or stop it from heating at all.
Control boards can also burn out from wear, moisture, or surges, often showing up as odd LED behavior or no response. And if REDLINK can’t talk to the battery, even a good heating element won’t get the power it needs.
When your go-to soldering iron suddenly stops heating up mid-project, understanding the REDLINK system can save you hours of frustration and unnecessary replacement costs.
Step-by-Step Troubleshooting Guide
Step 1: Battery Verification
Begin troubleshooting by testing battery condition and connection quality. Install a fully charged M12 REDLITHIUM battery and observe LED behavior when activating the tool.
If no LED illuminates, test the battery in another M12 tool to verify proper function. Clean battery terminals with a dry cloth and inspect for corrosion or damage. Try a different known-good battery to eliminate battery-related causes.
Step 2: Temperature and Environment Check
Verify that ambient temperature falls within the tool's operating range (32–104°F). Batteries and electronics perform poorly in extreme temperatures, potentially preventing normal heating operation.
Allow batteries and tools to reach room temperature before testing if they've been stored in hot or cold environments. Cold batteries may show reduced capacity, while hot batteries may enter thermal protection mode.
Step 3: LED Indicator Analysis
Observe LED behavior patterns when attempting to activate heating:
- No LED response: Indicates battery, connection, or control system problems
- Brief LED flash then shutdown: Suggests thermal fuse activation or severe overheating protection
- Solid red without heating: Indicates heating element or power delivery issues
- Green LED but no heat: Points to heating element failure or internal wiring problems
Step 4: Runtime and Performance Testing
If the LED indicates normal operation but heating seems inadequate, perform timed tests to verify heating performance:
- Heat-up time: Should reach soldering temperature within 18 seconds
- Temperature consistency: Should maintain steady heat during normal operation
- Runtime capacity: Should operate for approximately 40 minutes on a compact battery
Extended heating times, temperature fluctuations, or shortened runtime suggest component degradation or power delivery problems.
Step 5: Advanced Diagnostic Techniques
Tip Resistance Testing: Remove the tip and measure resistance across the heating element terminals using a multimeter. Normal resistance should read between 8–12 ohms. Open circuit (infinite resistance) indicates element failure.
Current Draw Analysis: Use a clamp meter to measure current draw during heating. Normal operation should draw 7–8 amps from the battery. Low current with no heating suggests element problems, while high current with poor heating indicates efficiency loss.
GenuineTools: Your Trusted Source for Milwaukee® M12 Replacement Solutions
GenuineTools offers expert guidance and reliable Milwaukee® M12 replacement solutions, ensuring you receive authentic products with full warranty coverage for your specific needs.
When troubleshooting reveals irreparable damage like thermal fuse activation or heating element failure, GenuineTools provides the most reliable solution for professional-grade Milwaukee® replacements. Our expertise in power tool diagnostics helps you understand when repair costs exceed replacement value, ensuring you make informed decisions about your tool investments.
At GenuineTools, we specialize in providing authentic Milwaukee® M12 tools with the technical knowledge to help you select the right replacement equipment for your specific applications. Every Milwaukee® M12 Soldering Iron arrives in original, sealed retail packaging with full manufacturer warranty coverage, giving you confidence in your purchase decision.
Our decades of experience in the professional tool industry mean we understand the frustration of heating failures and the importance of reliable soldering equipment for your work. We maintain a comprehensive inventory of the complete M12 system ecosystem, ensuring you can quickly replace failed tools without disrupting critical projects.
Customers rave about GenuineTools for unbeatable prices and reliable service, making it the go-to source for Milwaukee® M12 replacement solutions.
With our 30-day satisfaction guarantee and technical expertise, GenuineTools provides additional confidence beyond the manufacturer's warranty. If you're dealing with thermal fuse problems, heating element failures, or need guidance on preventing future issues, our knowledgeable team supports your troubleshooting efforts with professional-grade solutions.
Frequently Asked Questions (FAQ)
Why did my M12 soldering iron suddenly stop heating?
Sudden heating failure typically indicates thermal fuse activation, complete battery depletion, or catastrophic heating element failure. Begin troubleshooting with battery verification, then check LED indicator patterns. Thermal fuses activate permanently when exposed to excessive heat and cannot be reset.
Can I replace the thermal fuse myself?
Thermal fuse replacement requires complete housing disassembly, desoldering of internal components, and specialized knowledge of thermal protection systems. DIY thermal fuse replacement typically voids warranty coverage and can create safety hazards due to the high-voltage, high-temperature environment.
How can I tell if the heating element has failed?
Failed heating elements typically allow normal LED operation but produce no heat or significantly reduced heating performance. The tool may show a green LED status but fail to reach soldering temperature within 18 seconds, or may heat very slowly compared to normal operation.
Will using non-Milwaukee® batteries cause heating problems?
Counterfeit or incompatible batteries can cause heating failures, safety hazards, and permanent damage to REDLINK Intelligence systems. Always use genuine M12 REDLITHIUM batteries to ensure proper communication between the battery and tool electronics.
Where can I find a reliable replacement if my M12 soldering iron can't be repaired?
GenuineTools offers authentic Milwaukee® M12 Soldering Irons (2488-20) with full manufacturer warranty coverage and competitive pricing. When troubleshooting reveals thermal fuse activation, heating element failure, or other major component problems, replacement often provides better value than professional repair. GenuineTools stocks the complete M12 ecosystem and provides technical expertise to help select the right tools for your applications.
